| TECHNICAL DATA |
|---|

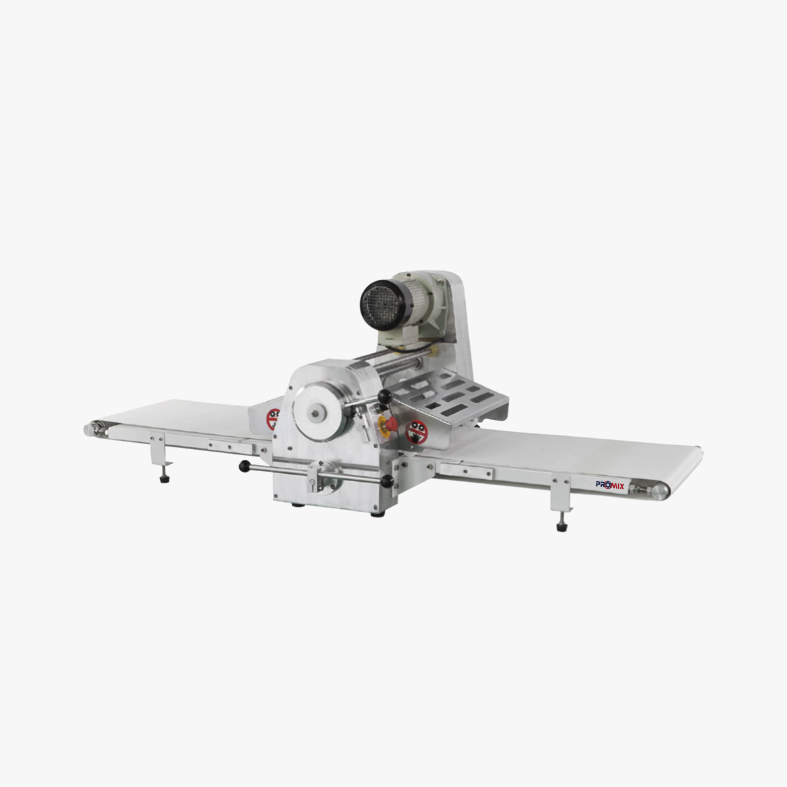

| Product name : DOUGH SHEETER DS520T |
| Power: 0.56KW |
| Voltage: 380 – 3ph – 50/60Hz |
| Speed: 88.6rpm |
| Capacity: 5kg Dough |
| Belt Dimentsion: 500 x 2000 mm |
| Roller Opening: 1-400 |
| Dimension: 820 x 1770 x 620 mm |
| Packing Dimension: 970 x 1900 x 1000mm |
| Net Weight KG: 125Kg |
| Gross Weight KG: 157Kg |
GENERAL FEATURE :
- With wide range distanee-adjusting, suitable for all occasions.
- The steel plate of the machine cover is one-time molded, steady and durable for operation.
- Easy to operate with both manual kever.
- Precise side gap between pressure surface disk roller to ensure the consistent thickness.
- All transmission part adopts high frequency quenching sprocket and chain transmission.
